MVI46-MNETC

Product Overview

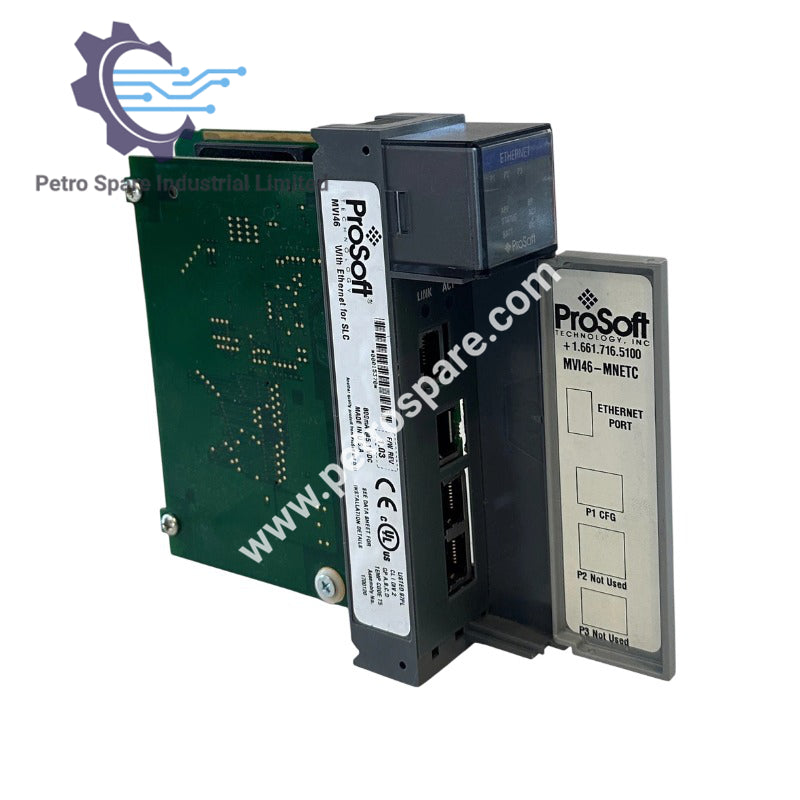

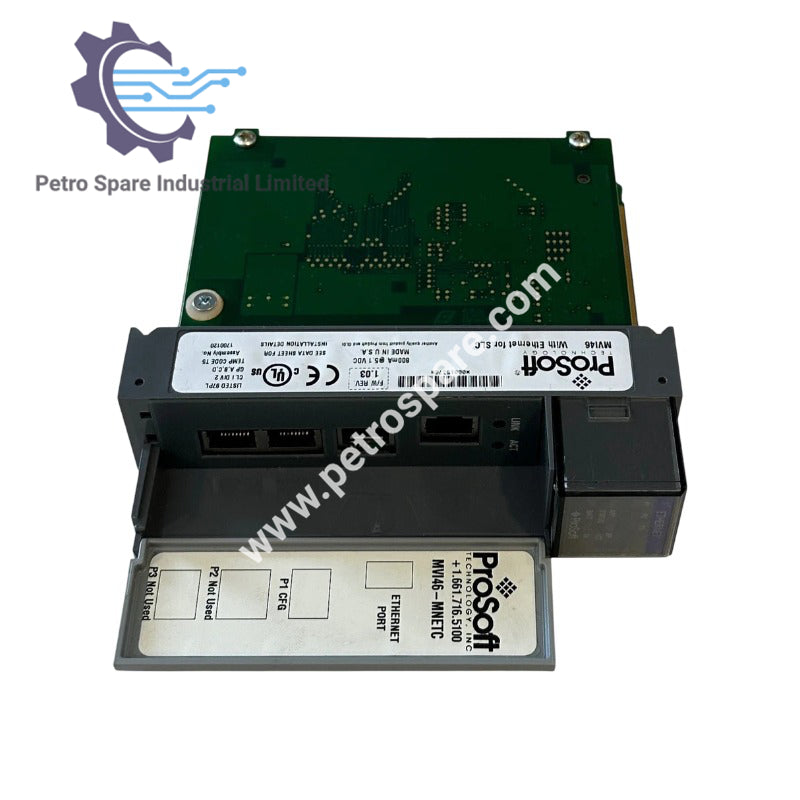

The MVI46-MNETC is a ProSoft Modbus TCP/IP Communication Client Module for SLC 5/02 M0/M1 capable processors, providing Modbus TCP/IP client connectivity.

Backplane Current Load

• @ 5V DC (from backplane): 800 mA

Temperature

• Operating: 0°C to 60°C (32°F to 140°F)
• Storage: –40°C to 85°C (–40°F to 185°F)

Relative Humidity

• 5% to 95% (non‑condensing)

Shock & Vibration

• Shock (Operational): 30g
• Shock (Non‑operational): 50g
• Vibration: 5g from 10 to 150 Hz

Processor Compatibility

• Compatible with Rockwell Automation SLC 5/02 M0/M1 capable processors or newer

LED Indicators

• Module status
• Backplane transfer status
• Application status
• Serial activity (debug port)
• Ethernet link and activity
• Error LED status

Debug/Configuration Port (CFG)

• Connector: RJ45 (DB‑9M with supplied cable)
• Type: RS‑232 only
• Hardware Handshaking: No

Configuration Connector

• Type: RJ45 RS‑232 Connector (RJ45 to DB‑9 cable shipped with unit)

---
