MVI56E-FLN

Product Overview

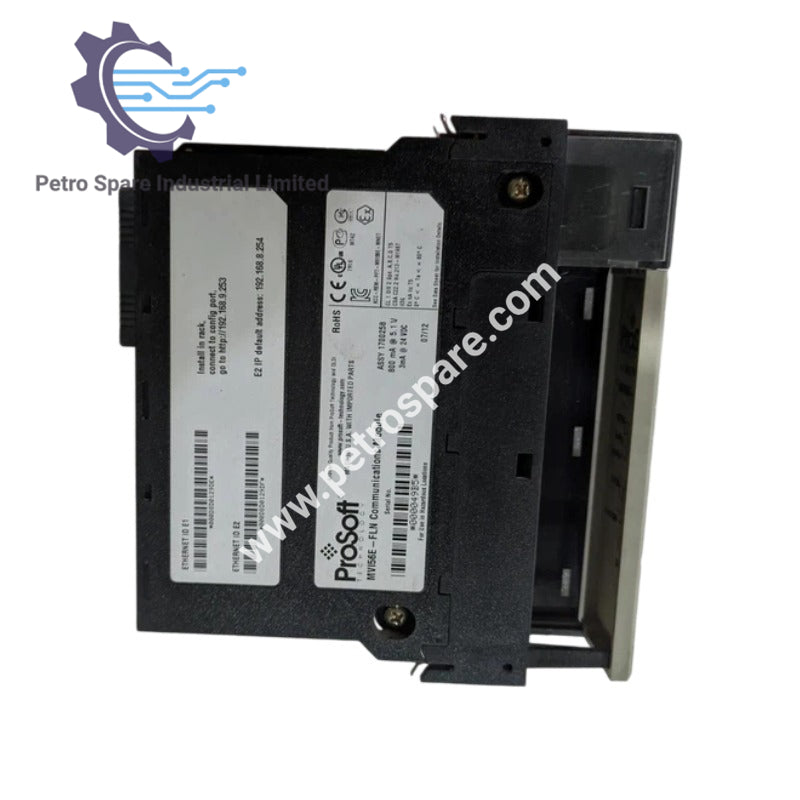

The MVI56E-FLN is a ProSoft FA Control Network Ethernet Communication Module for ControlLogix, providing connectivity to FL‑net networks for Japanese FA (Factory Automation) control applications.

Backplane Current Load

• @ 5V DC: 800 mA
• @ 24V DC: 3 mA

Temperature

• Operating: 0°C to 60°C (32°F to 140°F)
• Storage: –40°C to 85°C (–40°F to 185°F)

Shock & Vibration

• Shock (Operational): 30g
• Shock (Non‑operational): 50g
• Vibration: 5g from 10 to 150 Hz

Relative Humidity

• 5% to 95% (non‑condensing)

LED Indicators

• Application Status (APP)
• Module Status (OK)
• 4‑Character, Scrolling, Alphanumeric LED Display (shows module, version, IP, application port setting, port status, and error information)

Debug/Configuration Ethernet Port (E1)

• Type: 10/100 Base‑T, RJ45 Connector (CAT5)
• Indicators: Link and Activity LED
• Auto‑crossover cable detection: Yes

FL‑net Application Ethernet Port (E2)

• Type: 10 Base‑T, RJ45 Connector (CAT5)
• Indicators: Link and Activity LED
• Auto‑crossover cable detection: Yes

---
