IC697CGR772

Overview

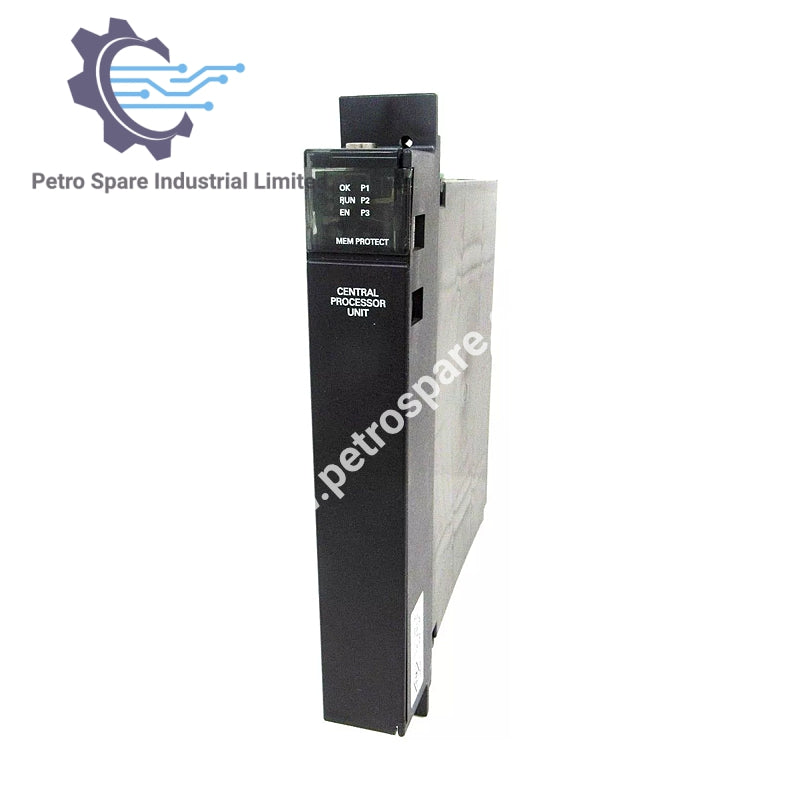

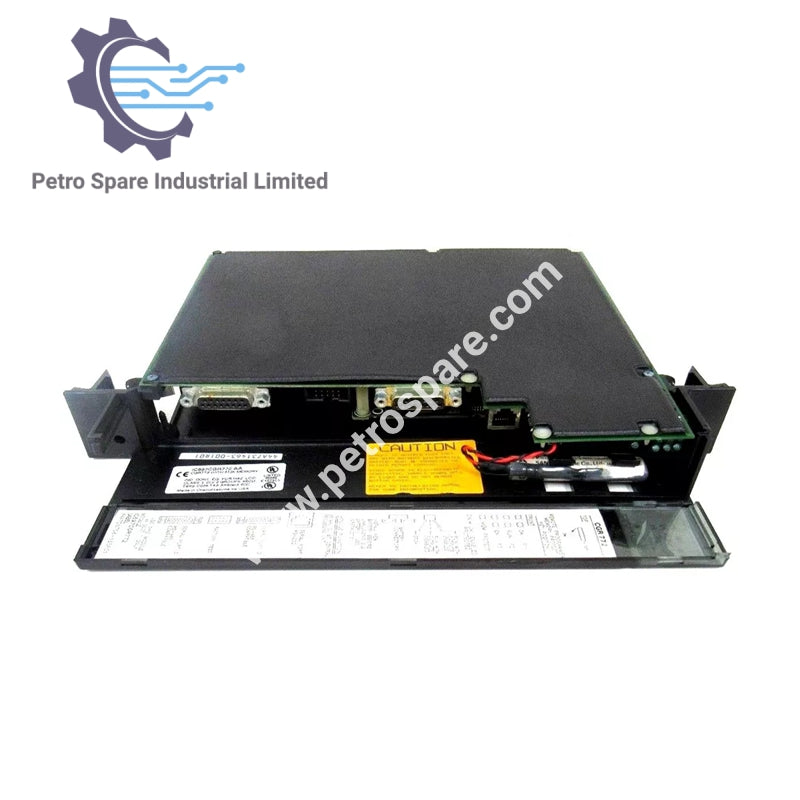

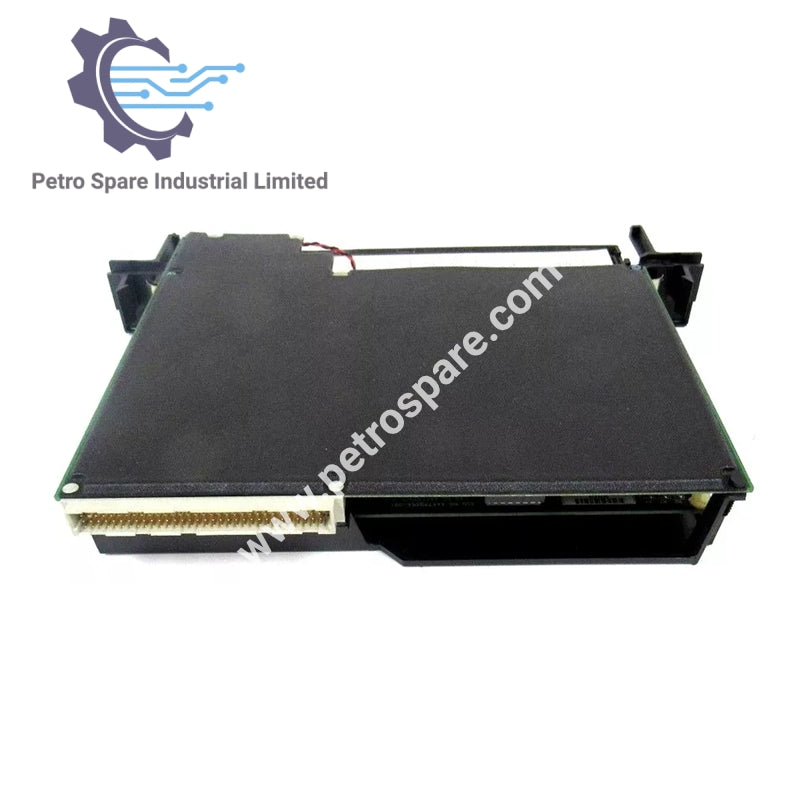

The IC697CGR772 is a 512 KByte Memory CPU from GE Fanuc.

General Information

• Part Number: IC697CGR772

• Processor: 96 MHz, 80486DX4 microprocessor

• Memory: 512 KByte Memory

• Product Type: Central Processing Unit

Key Features

• Floating Point Calculations: Supports floating point calculations

• Slot: Single slot CPU

• I/O Capacity: 2048 inputs and 2048 outputs, up to 8K analog I/O

• Processing Speed: 0.4 microseconds per boolean function

• I/O Support: Supports IC660/IC661 and IC697 I/O products

• Programming: Programmed by MS-DOS (IC641) or Windows-based software products

• Memory: Supports 512 Kbytes of battery-backed fast CMOS RAM memory in the same slot

• Configuration: Configurable data and program memory

• Clock: Battery-backed calendar clock

• Operation Mode: Three position operation mode switch

• Security: Password controlled access, keyswitch memory protection

• Indicators: Seven status LEDs

• Configuration: Software configuration (No DIP switches or jumpers to set)

• Additional: Reference information inside front door

Battery and Power

• Battery Shelf Life: 5 years at 20°C (68°F)

• Memory Retention: 6 months nominal without applied power

• Current Required from 5V Bus: 3.1 Amps nominal

• Operating Temperature: 0 to 60°C (32 to 140°F)

• Time of Day Clock Accuracy: ±3.5 seconds per day maximum

• Elapsed Time Clock Accuracy: ±0.01% maximum

Serial Ports

• Port 1: RS-232 compatible

• Port 2: RS-485 compatible (optocoupler isolated)

• Port 3: RS-485 compatible (not isolated)

• Protocols Supported: SNP Slave only

• Function: Programmer Serial Attachment or other serial devices

---
