8440-2050

Overview

• Manufacturer: Woodward

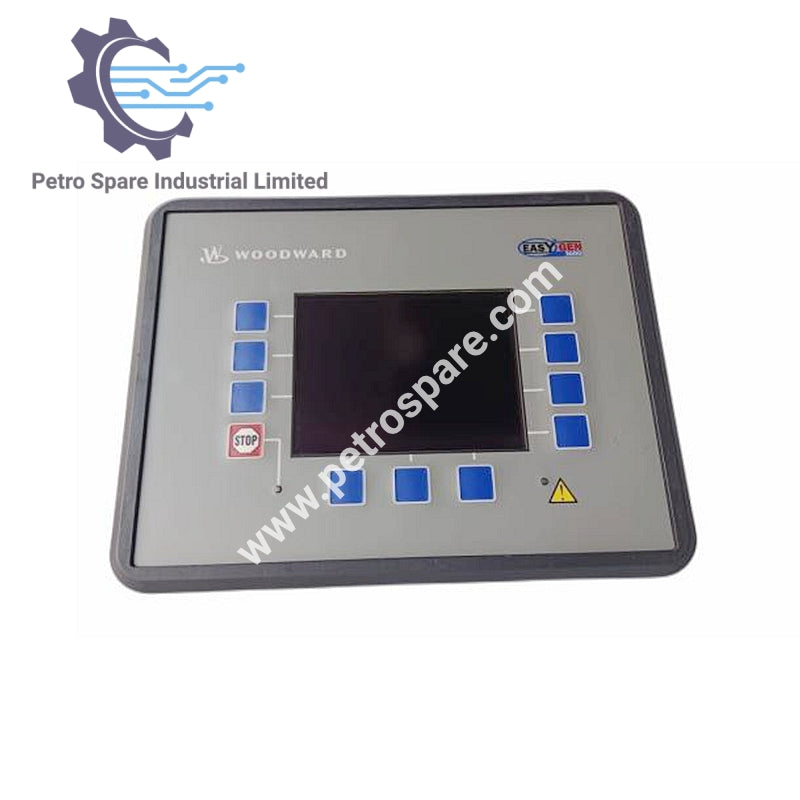

• Model: 8440-2050 - Genset Controller

Control & Operations

• Peak Shaving & Control: Peak shaving, import/export control.

• Genset Control: Up to 32 gensets with automatic sequencing.

Display & Configuration

• HMI: Color LCD, soft keys.

• Configuration: Operator interface or ToolKit software.

Inputs & Outputs

• I/O: 12 discrete outputs, 16 external I/Os (CANopen), 3 analog inputs, 2 analog outputs (±10V, ±20mA, PWM).

Protection & Monitoring

• Protection: Generator, engine, mains protection, overspeed, excitation failure.

• Monitoring: Speed and frequency mismatch.

Electrical & Environmental Specs

• Power Supply: 12/24 VDC (8-40 VDC).

• Measuring Frequency: 50/60 Hz (40-85 Hz).

• Temperature: Operating: -20°C to 70°C; Storage: -30°C to 80°C.

• Humidity: Max 95% non-condensing.

Physical Dimensions

• Back Panel: 250W x 227H x 50mm D.

---
