140734-05

Overview

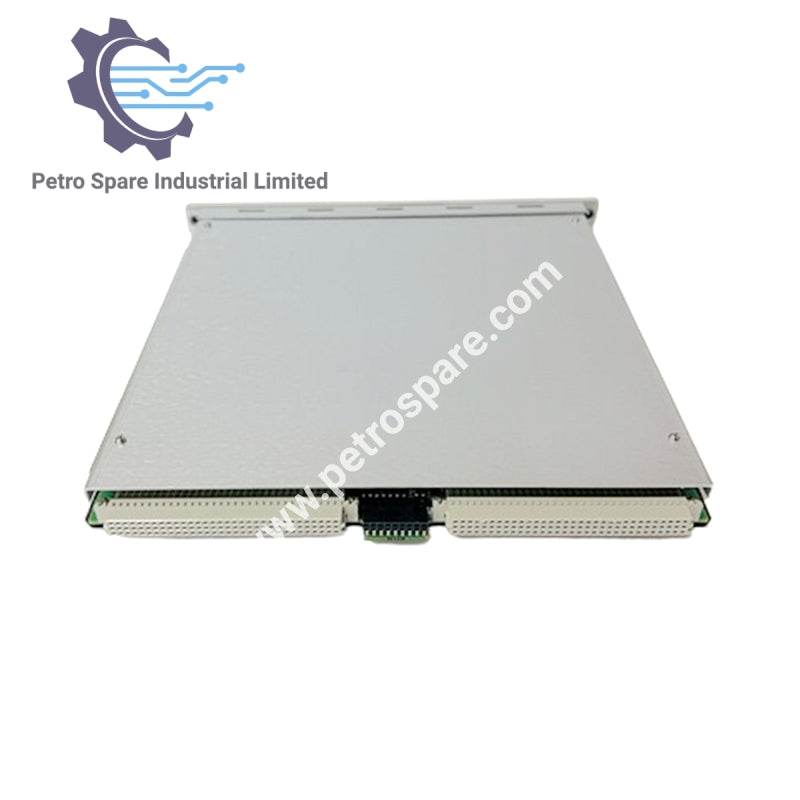

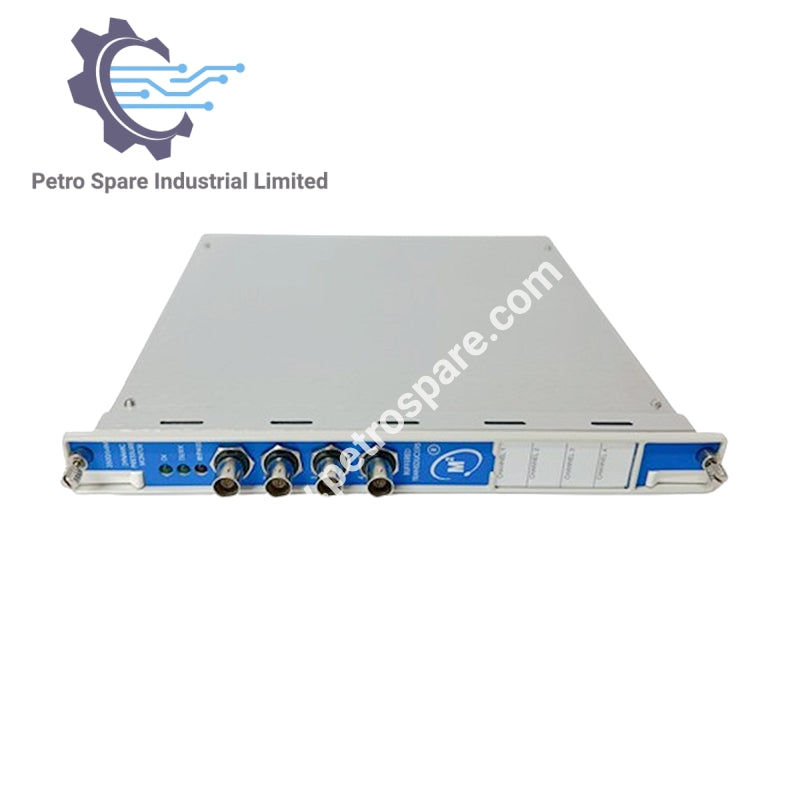

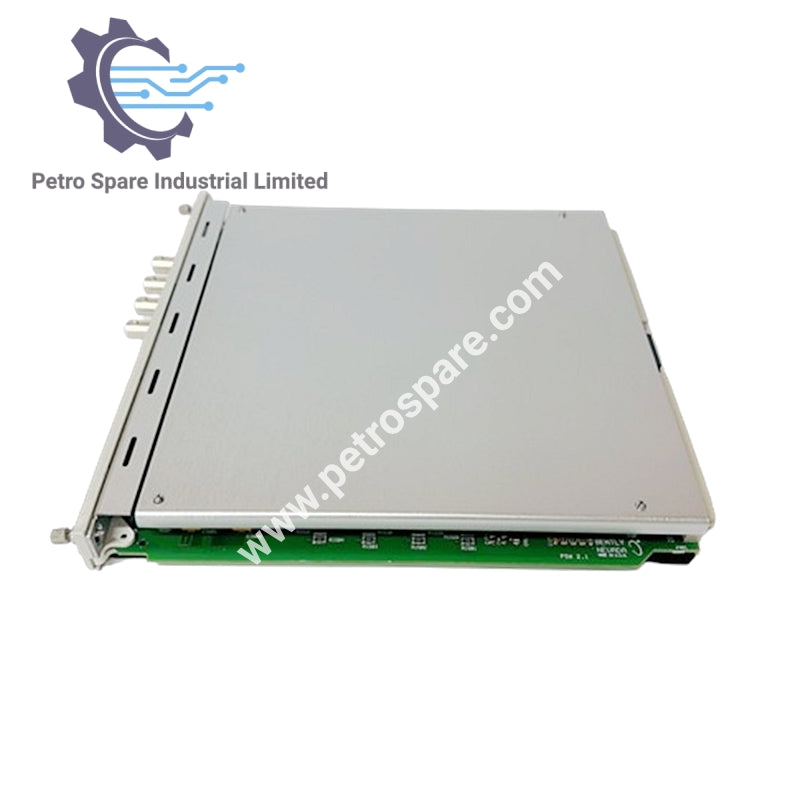

140734-05 3500/64M Dynamic Pressure Monitor accepts input from 1 to 4 pressure transducer signals, conditioning them for dynamic pressure measurement and providing relevant outputs.

Inputs

• Signal: Accepts from 1 to 4 pressure transducer signals
• Input Impedance:
  • 3-wire transducer: 10 kΩ
  • 2-wire: 1.5 MΩ to 3.5 MΩ (typical)
• Sensitivity:
  • Dynamic pressure: 100 mV/psi (1.45 mV/mBar)

Outputs

• Front Panel LEDs:
  • OK LED: Indicates proper operation
  • TX/RX LED: Indicates communication with other modules
  • Bypass LED: Indicates Bypass Mode

---
