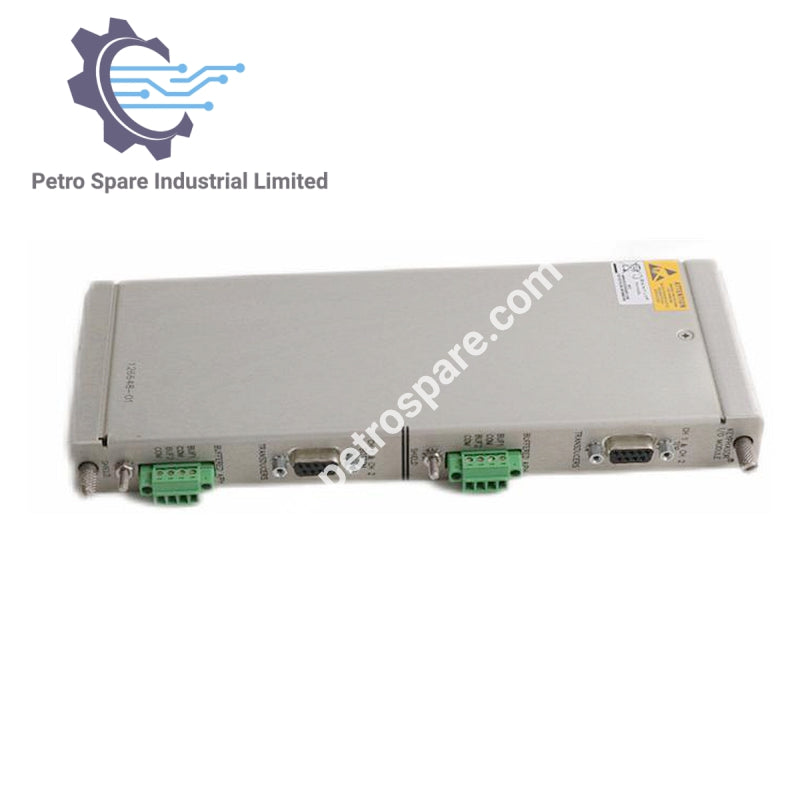

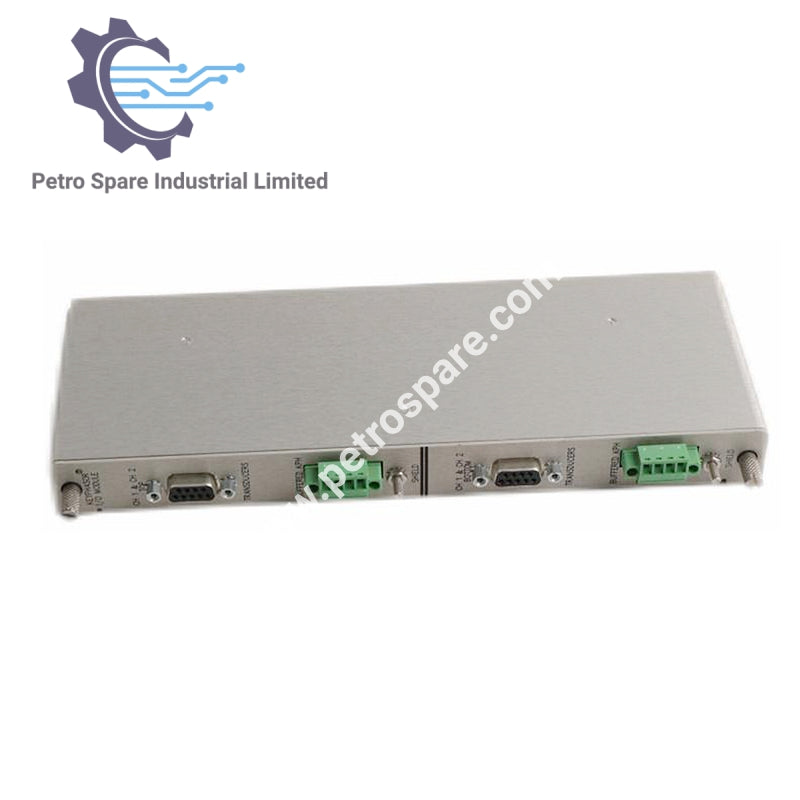

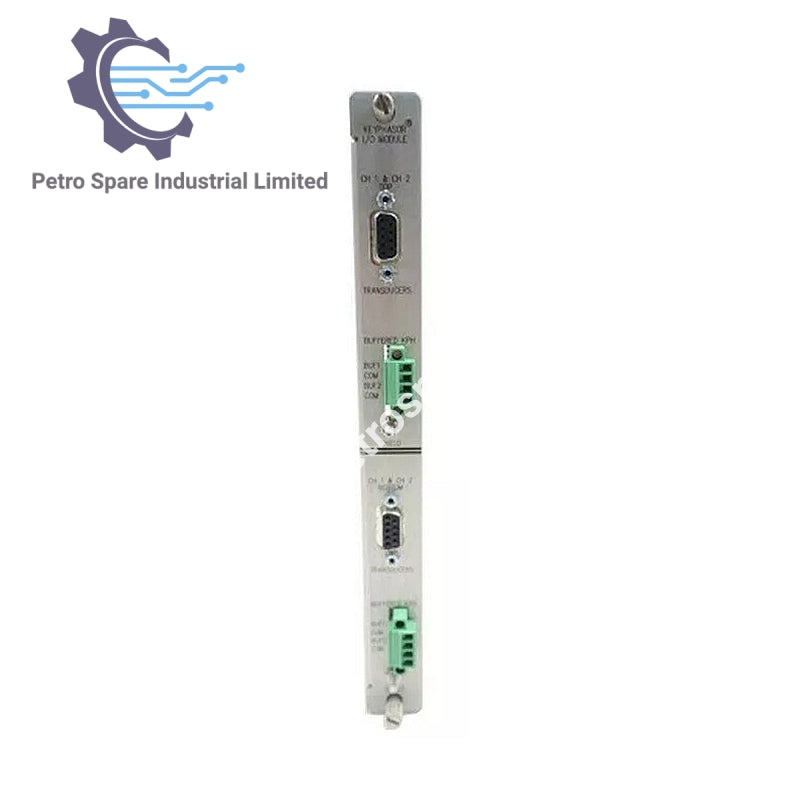

126648-01

Overview

• Model: 126648-01
• Type: Keyphasor I/O Module (External Terminations)
• Manufacturer: Bently Nevada
• Application: Magnetic Pickup, Proximitor

Specifications

• Rack Space: 1 full-height rear slot

Design & Functionality

• Signal Isolation: For multiple device connections requiring isolation from control systems
• Phase & Speed Measurement: Measures shaft speed, with larger phase shift than Non-Isolated version
• Compatibility: Works with Proximitor applications with external power

System Configuration

• TMR Compatibility: Two modules required for Triple Modular Redundant systems
• Input Channels: Supports paired design for up to four primary and backup inputs

---
