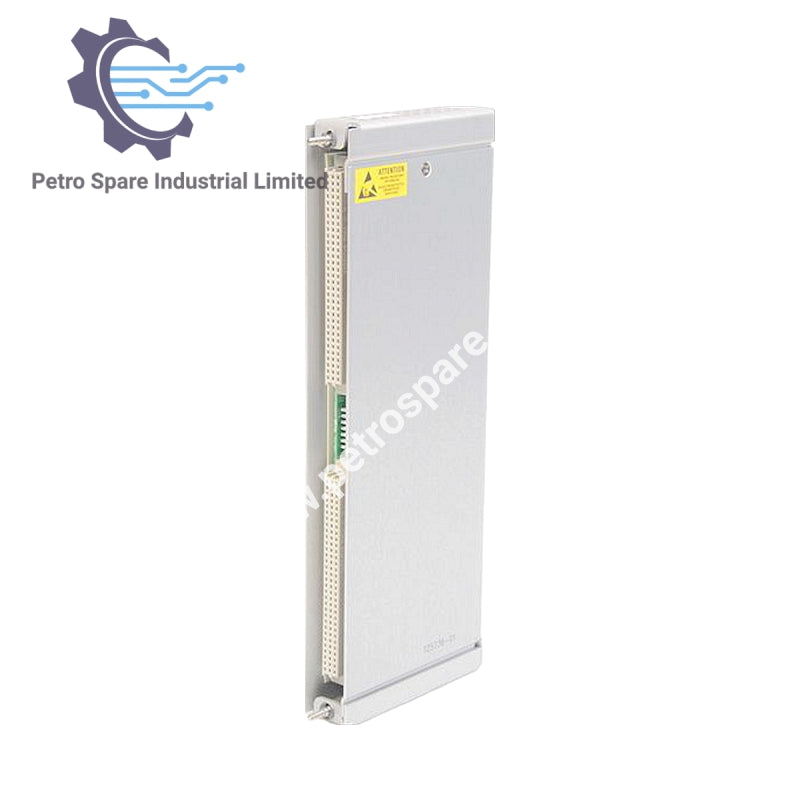

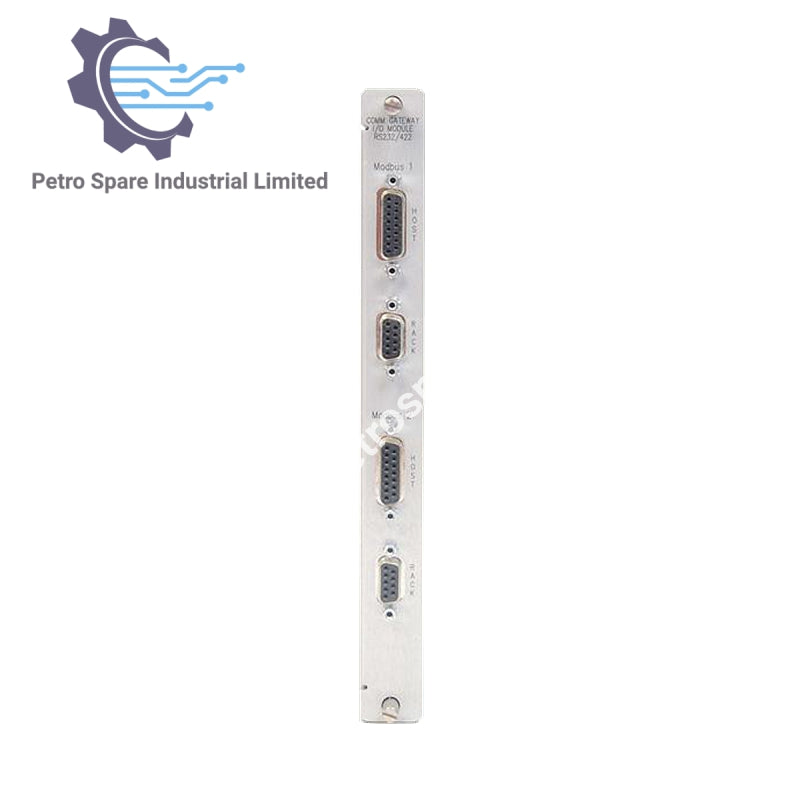

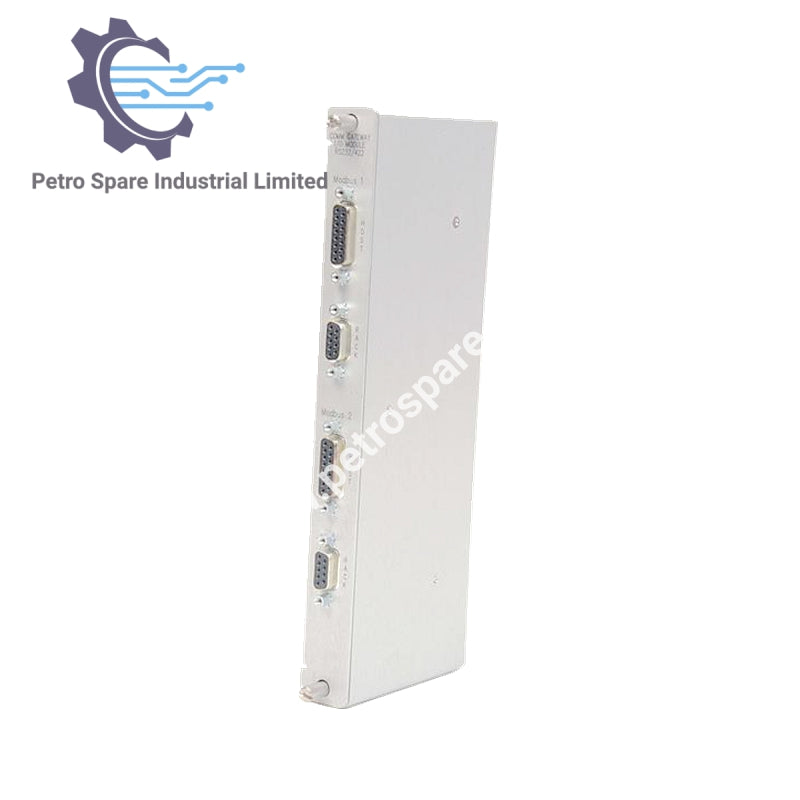

125736-01

Overview

• Model Number: 125736-01
• Product Type: Modbus RS232/RS422 I/O Module
• Manufacturer: Bently Nevada

Dimensions

• Height x Width x Depth: 241 mm x 24.4 mm x 99.1 mm
• (9.50 in x 0.96 in x 3.90 in)
• Weight: 0.44 kg (0.96 lb.)

Inputs

• Power Consumption:
  • Modbus RS232/RS422 I/O Module: 5.0 Watts typical
  • Modbus RS485 I/O Module: 5.6 Watts typical

Outputs

• OK LED: Indicates when the 3500/92 is operating properly.
• TX/RX LED: Indicates when the 3500/92 is communicating with other modules in the 3500 rack.

Slot Requirement

• 1 full-height rear slot

---
