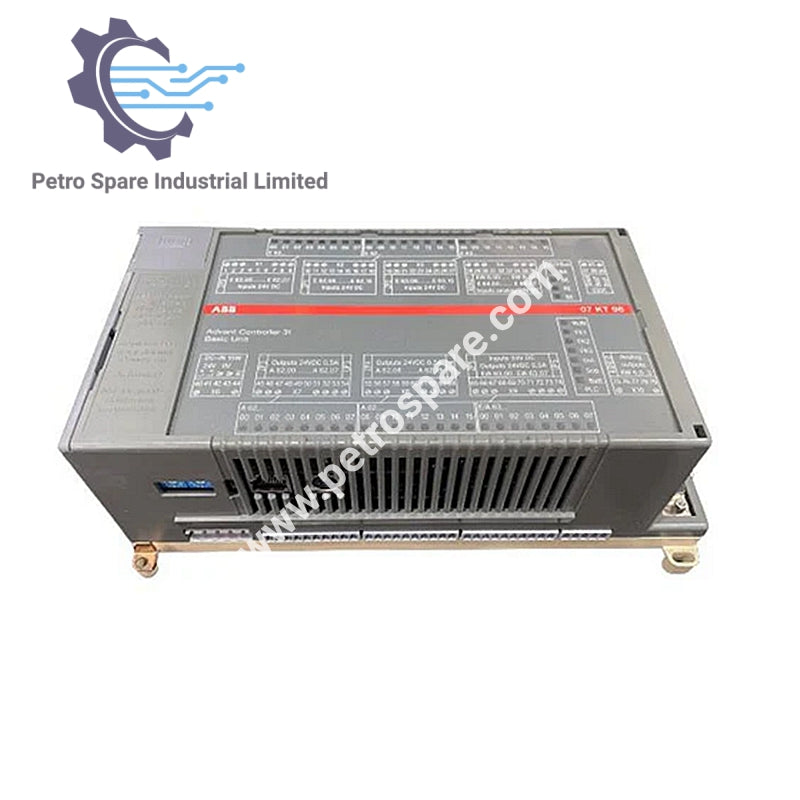

07 KT 98

Description

• Model: 07 KT 98
• Type: Basic Unit
• Function: Central processing unit with extensive I/O capabilities for industrial automation

I/O Specifications

• Digital Inputs: 24
• Digital Transistor Outputs: 16
• Digital I/O: 8
• Analog Inputs: 8
• Analog Outputs: 4
• I/O Expansion:
  • Up to 992 digital inputs
  • Up to 992 digital outputs
  • Up to 224 analog input channels
  • Up to 224 analog output channels
  • Max. 31 remote modules

Connectivity

• Serial Interfaces: 2 (for programming or man-machine communication)
• Parallel Interfaces: 1 special interface for communication processor
• Bus System: CS31 system bus

Memory & Processing

• Integrated Memory:
  • Flash EPROM: 1 MB program + 128 kB user data
  • SRAM: 256 kB RETAIN
  • DRAM: 1 MB program + 1 MB user data
• Real-Time Clock Resolution: 1 second
• High-Speed Hardware Counter:
  • Counting Range: -32768 to +32767 (16 bits signed integer)
  • Counting Frequency: max. 50 kHz

Operating Features

• Operating Modes: 7
• Processing Time: 0.07 ms/kB program (65% bits, 35% words)
• Timers: Any number, delay time from 1 ms to 24.8 days
• Counters: Any number of up/down counter software blocks
• Flags:
  • 8192 bit flags
  • 8192 word flags
  • 1024 double word flags

Indicators & Wiring

• Status Indicators: 60 LEDs for operating statuses and errors
• Wiring Method: Removable screw-type terminal blocks

Power Supply

• CS31 System Bus Power Supply: Max. 1 x 2.5 mm² or max. 2 x 1.5 mm²
• Other Terminals: Max. 1 x 1.5 mm²

---
